Umumiy kirish

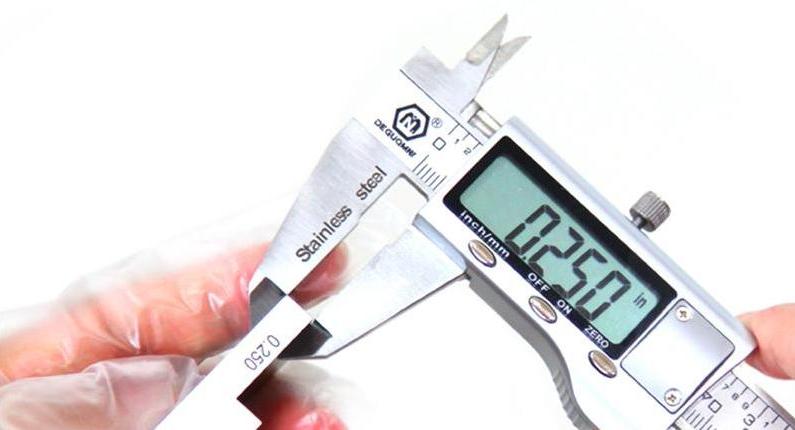

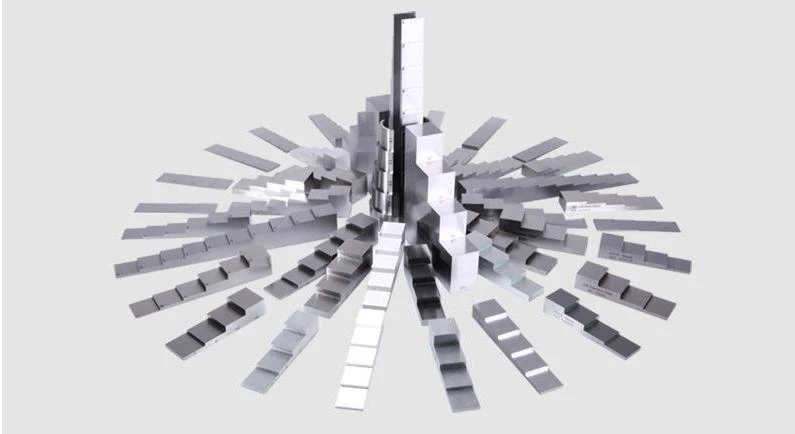

YUSHI turli xil pog'onali ultratovushli qalin bloklarga ega. Bloklarning materiali 304 zanglamaydigan po'lat, karbonli po'lat, 6063 alyuminiy va boshqa materiallardan iborat. Sinov blokining kengligi, uzunligi va aniqligining chegara og'ishi ± 0,1 ni tashkil qiladi. mm, va og'ish 1018 po'lat material qalinligi bo'lsa -0.02mm dan kam yoki teng. 12,5 mm dan kam yoki unga teng; 1018 po'lat materialning qalinligi > 12,5 mm bo'lsa, og'ish -0.1 mm dan kam yoki teng bo'ladi. Har bir YUSHI qadam bloki zavod sertifikatlari bilan chiqadi va OEM xizmatini qo'llab-quvvatlaydi. YUSHI sinov bloklari moslashtirilishi mumkin, va blok materiallari ham mijozlar uchun qayta ishlanishi mumkin.
Ultrasonik qalin bloklar uchun ishlab chiqarish uskunalari
Tel kesish, sirt maydalagich, vakuumli ishlov berish pechi va boshqa nozik uskunalar
Mahsulot xususiyatlari
1. Keng xilma-xillikni tanlash mumkin;
2.Premium materialni tanlang va ishlov berish uchun nozik mexanik uskunalardan foydalaning;
3.Shu jumladan 1018,304,6063,7075 qotishma va boshqa materiallar;
4.ISO, AWS, ASTM standartlariga qat'iy muvofiq.
Blok spetsifikatsiyasi
|
Masshtab qiymati |
Hajmi |
Material |
|||
|
Mm. |
In. |
Mm. |
In. |
||
|

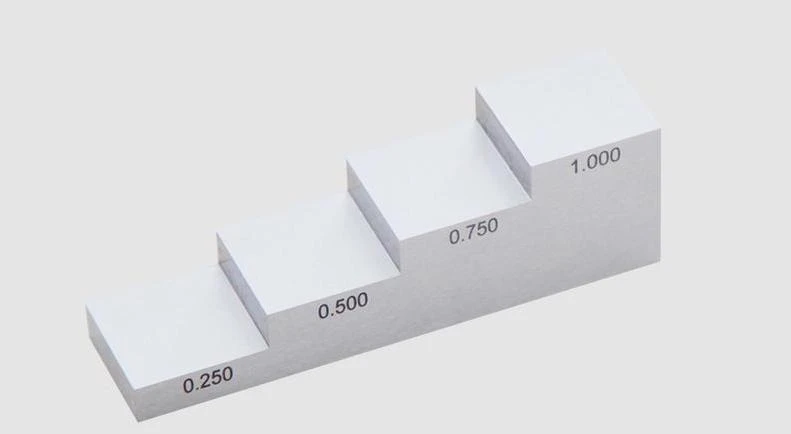

4-Bosqichli blok |
0.80mm/1.00mm/1.50mm/2.00mm 3.00mm/5.00mm/10.00mm/15.00mm 2,50mm/5.00mm/10.00mm/20.00mm 6.25mm/12.50mm/18.75mm/25.00mm 12,50mm/25.00mm/37,50mm/50,0mm 0.040"0.060"0.080"0.100" 0.100"0.200"0.400"0.600" 0.250"0.500"0.750"1.000" |
80.0mm*20,0mm 80,0mm*24,5mm 80.0mm*23,0mm 3.2"*0.8" |
1018 po'lat, 304 zanglamaydigan po'lat, 6063 alyuminiy |
||
|
5-Blkok qadami |
0.50mm /1.00mm /1.50mm / 2.00mm / 2,50 mm 1.00mm / 2.00mm / 3.00mm / 4.00mm / 5.00mm 2.50mm / 5.00mm / 7.50mm / 10.00mm / 12,50 mm 5.00mm / 10.00mm / 15.00mm / 20.00mm / 25.00mm 0.010" 0.020" 0.030" 0.040" 0.050" 0.020" 0.040" 0.060" 0.080" 0.100" 0.050" 0.250" 0.500" 1.000" 2.000" 0.100" 0.250" 0.500" 0.750" 1.000" 0.100" 0.200" 0.300" 0.400" 0.500" 0.500" 0.750" 1.000" 1.500" 2.000" |
100,0 x 20,0 mm 100,0 x 24,5 mm 3.75" x 0.75" 4" x 0.8" 4" x 0.965" |
1018 po'lat, 304 zanglamaydigan po'lat, 6Al4V |
||
|
6-Bosqichli blok |
1.00mm / 3.00mm / 5.00mm / 10.00mm / 15.00mm / 20.00mm 2.50mm / 5.00mm / 10.00mm / 15.00mm / 20.00mm / 25.00mm |
120.0 x 20,0 mm 120,0 x 24,5 mm |
1018 po'lat, 304 zanglamaydigan po'lat |
||
|
7-Bosqichli blok |
1mm/1,5mm/2mm/4mm/6mm/8mm/10mm 3mm/12mm/24mm/30mm/36mm/42mm/48mm |
140.0mm*20,0mm |
1018 po'lat, 304 zanglamaydigan po'lat |
||
|
8-Bosqichli blok |
1.00mm / 2.00mm / 3.00mm / 4.00mm / 5.00mm / 6.00mm / 7.00mm / 8.00mm 0.030" 0.040" 0.050" 0.060" 0.070" 0.080" 0.090" 0.100" |
160.0 x 20,0 mm 6.4" x 0.8 |
1018 Chelik |
||
|
10-Bosqichli blok |
1.00mm / 2.00mm / 3.00mm / 4.00mm / 5.00mm / 6.00mm / 7.00mm / 8.00mm / 9.00mm / 10.00mm 2.00mm / 4.00mm / 6.00mm / 8.00mm / 10.00mm / 12.00mm / 14.00mm / 16.00mm / 18.00mm / 20.00mm 2.50mm / 5.00mm / 7.50mm / 10.00mm / 12.50mm / 15.00mm / 17.50mm / 20.00mm / 22,50mm / 25.00mm 0.050" 0.100" 0.150" 0.200" 0.250" 0.300" 0.350" 0.400" 0.450" 0.500" 0.100" 0.200" 0.300" 0.400" 0.500" 0.600" 0.700" 0.800" 0.900" 1.000" 1.100" 1.200" 1.300" 1.400" 1.500" 1.600" 1.700" 1.800" 1.900" 2.000" |
200,0 x20,0mm 7.5" x 0.75" 7.5" x 0.8" 8" x 0.8" |
1018 po'lat, 304 zanglamaydigan po'lat, 7075 alyuminiy |
||
|
Maslahat qadam bloki |
25.00mm / 50.0mm / 75.0mm / 100,0mm 37,5 mm / 62,5 mm / 87,5 mm / 112,5 mm 1.0", 2.0", 3.0",4.0" 1.5", 2.5", 3.5",4.5" 25.00mm/50.0mm/75.0mm/100,0mm 1.000",2.000",3.000",4.000" |
kengligi: 1 "(25,4 mm) Holatni kiriting |
1018 Chelik |
||
|
Egri sirt bloki |
2,50mm / 5.00mm / 10.00mm / 15.00mm / 20.00mm 0.100" 0.200" 0.300" 0.400" 0.500" |
120 daraja burilish 5-Qadam bloki kengligi: 20.0mm'×120 daraja / 0,8" ×120 daraja ichki diametri: 20.0mm/1" uzunlik: 100,0mm/4" |
1018 po'lat, 304 zanglamaydigan po'lat |
||
Biz OEM xizmati va moslashtirilgan xizmatni qo'llab-quvvatlaymiz. Har bir blok zavod sertifikati bilan chiqadi.
