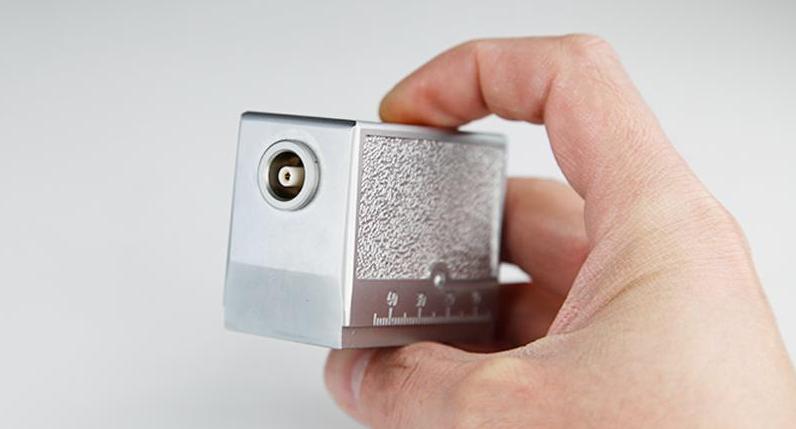

Umumiy kirish
YUSHI ko'ndalang to'lqinli burchakli nurlanish probi yoriqlar, teshiklar va teshiklar kabi nuqsonlarni aniqlash yoki payvandlashni tekshirish uchun keng qo'llaniladi.. Keyin ko'ndalang to'lqin sinov ob'ektidagi nuqsonlar bilan aks ettiriladi. Uzunlamasına to'lqinlar bilan solishtirganda, kesish to'lqinlari pastroq zaiflashuvga va qisqaroq to'lqin uzunligiga ega, bu ularni kichikroq nuqsonlarni aniqlashga qodir.
Ishlash printsipi
Kesish to'lqinining oblik probi ko'ndalang to'lqinni aniqlash bo'lib, u birinchi kritik burchak va ikkinchi kritik burchak o'rtasida tushuvchi burchakka ega bo'lgan zond va singan to'lqin sof kesish to'lqini bo'lib, u asosan aniqlashga perpendikulyar nuqsonlarni aniqlash uchun ishlatiladi. sirt yoki ma'lum bir burchak ostida va choklarni, quvurlarni va zarblarni aniqlashda keng qo'llaniladi

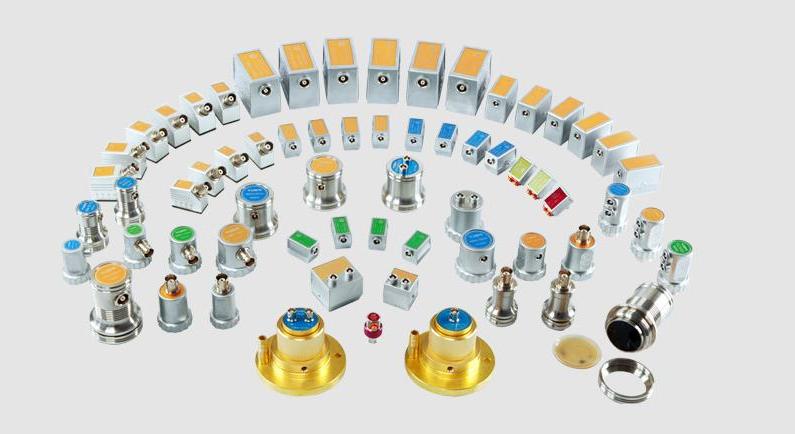

Nima uchun YUSHI transvers to'lqin probi sezgirroq?
● Kompozit materiallardan tayyorlangan piezoelektrik gofretlarni qabul qiling

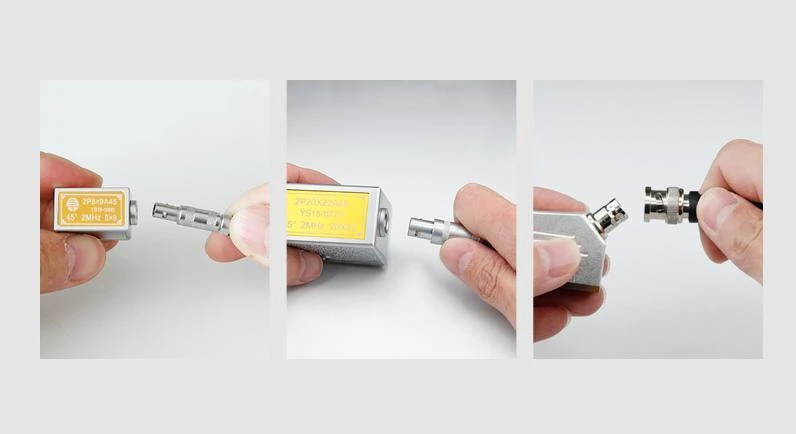

● Tanlanadigan ulagich
● Yuzaki anodik oksidlanish jarayoni
● PMMA-kiyiladigan prob takoz
Transvers to'lqinli zondning qo'llanilishi
Umumiy payvandlash yoriqlari Tekshirish
Quvur liniyasi, bosimli idishlar
Aks, quyma, zarb qilish
Temir yo'l g'ildiraklari va relslari
Nasoslar, klapanlar
Turbin pichoqlari
Prob spetsifikatsiyasi
|
Model |
Chastotasi |
Element hajmi |
Sinishi burchagi |
Maydon uzunligiga yaqin |
||
|
MGts |
Mm. |
In. |
Chelik |
mm |
ichida |
|
|
2.5P13x13K1 |
2.5 |
13x13 |
.51x.51 |
45 daraja |
44 |
1.7 |
|
2.5P13x13K1.5 |
2.5 |
13x13 |
.51x.51 |
56,3 daraja |
44 |
1.7 |
|
2.5P13x13K2 |
2.5 |
13x13 |
.51x.51 |
63,4 daraja |
44 |
1.7 |
|
2.5P13x13K2.5 |
2.5 |
13x13 |
.51x.51 |
68,2 daraja |
44 |
1.7 |
|
2.5P13x13K3 |
2.5 |
13x13 |
.51x.51 |
71,6 daraja |
44 |
1.7 |
|
5P13x13K1 |
5 |
13x13 |
.51x.51 |
45 daraja |
88 |
3.5 |
|
5P13x13K1.5 |
5 |
13x13 |
.51x.51 |
56,3 daraja |
88 |
3.5 |
|
5P13x13K2 |
5 |
13x13 |
.51x.51 |
63,4 daraja |
88 |
3.5 |
|
5P13x13K2.5 |
5 |
13x13 |
.51x.51 |
68,2 daraja |
88 |
3.5 |
|
5P13x13K3 |
5 |
13x13 |
.51x.51 |
71,6 daraja |
88 |
3.5 |
|
2.5P10x16K1 |
2.5 |
10x16 |
.39x.63 |
45 daraja |
42 |
1.7 |
|
2.5P10x16K1.5 |
2.5 |
10x16 |
.39x.63 |
56,3 daraja |
42 |
1.7 |
|
2.5P10x16K2 |
2.5 |
10x16 |
.39x.63 |
63,4 daraja |
42 |
1.7 |
|
2.5P10x16K2.5 |
2.5 |
10x16 |
.39x.63 |
68,2 daraja |
42 |
1.7 |
|
2.5P10x16K3 |
2.5 |
10x16 |
.39x.63 |
71,6 daraja |
42 |
1.7 |
|
5P10x16K1 |
5 |
10x16 |
.39x.63 |
45 daraja |
84 |
3.3 |
|
5P10x16K1.5 |
5 |
10x16 |
.39x.63 |
56,3 daraja |
84 |
3.3 |
|
5P10x16K2 |
5 |
10x16 |
.39x.63 |
63,4 daraja |
84 |
3.3 |
|
5P10x16K2.5 |
5 |
10x16 |
.39x.63 |
68,2 daraja |
84 |
3.3 |
|
5P10x16K3 |
5 |
10x16 |
.39x.63 |
71,6 daraja |
84 |
3.3 |
|
2.5P9x9K1 |
2.5 |
9x9 |
.35x.35 |
45 daraja |
21 |
0.8 |
|
2.5P9x9K1.5 |
2.5 |
9x9 |
.35x.35 |
56,3 daraja |
21 |
0.8 |
|
2.5P9x9K2 |
2.5 |
9x9 |
.35x.35 |
63,4 daraja |
21 |
0.8 |
|
2.5P9x9K2.5 |
2.5 |
9x9 |
.35x.35 |
68,2 daraja |
21 |
0.8 |
|
2.5P9x9K3 |
2.5 |
9x9 |
.35x.35 |
71,6 daraja |
21 |
0.8 |
|
5P9x9K1 |
5 |
9x9 |
.35x.35 |
45 daraja |
42 |
1.7 |
|
5P9x9K1.5 |
5 |
9x9 |
.35x.35 |
56,3 daraja |
42 |
1.7 |
|
5P9x9K2 |
5 |
9x9 |
.35x.35 |
63,4 daraja |
42 |
1.7 |
|
5P9x9K2.5 |
5 |
9x9 |
.35x.35 |
68,2 daraja |
42 |
1.7 |
|
5P9x9K3 |
5 |
9x9 |
.35x.35 |
71,6 daraja |
42 |
1.7 |
|
2.5P8x12K1 |
2.5 |
8x12 |
.31x.47 |
45 daraja |
25 |
1.0 |
|
2.5P8x12K1.5 |
2.5 |
8x12 |
.31x.47 |
56,3 daraja |
25 |
1.0 |
|
2.5P8x12K2 |
2.5 |
8x12 |
.31x.47 |
63,4 daraja |
25 |
1.0 |
|
2.5P8x12K2.5 |
2.5 |
8x12 |
.31x.47 |
68,2 daraja |
25 |
1.0 |
|
2.5P8x12K3 |
2.5 |
8x12 |
.31x.47 |
71,6 daraja |
25 |
1.0 |
|
5P8x12K1 |
5 |
8x12 |
.31x.47 |
45 daraja |
50 |
2.0 |
|
5P8x12K1.5 |
5 |
8x12 |
.31x.47 |
56,3 daraja |
50 |
2.0 |
|
5P8x12K2 |
5 |
8x12 |
.31x.47 |
63,4 daraja |
50 |
2.0 |
|
5P8x12K2.5 |
5 |
8x12 |
.31x.47 |
68,2 daraja |
50 |
2.0 |
|
5P8x12K3 |
5 |
8x12 |
.31x.47 |
71,6 daraja |
50 |
2.0 |
